Temperature Measurement Products
Chino America, Manufacturer of Non-Contact Infrared Pyrometers and Thermometers
CHINO Corporation is a manufacturer of industrial process instruments, sensors and control equipment for measuring and controlling temperature, moisture, thickness and humidity. CHINO is known throughout the world as an innovator and provider of quality instruments for over 60 years. Instruments include temperature sensors, recorders, infrared thermometers, controllers, systems and other accessories. CHINO can be your supplier for all your measurement and control needs.
CHINO Works America Inc. is a wholly owned subsidiary of CHINO Corporation and was incorporated in the USA, in 1983. CHINO Works America (CWA) has been providing Application Assistance, Customer Support and Service, of products manufactured by CHINO Corporation, for over 20 years in North and South America. In addition, CWA provides Sales and Marketing functions for their customers, representatives and distributors. CWA also stocks certain instruments, spare parts and consumable items.

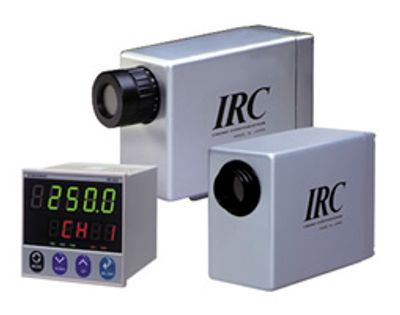

IR-CA Series High-speed Compact Infrared Thermometers
The IR-CA series is a non-contact and high-speed (3ms) compact radiation thermometer covering medium and high temperature range by using the detecting element of InGaAs or Si. The thermometer with converting function has a digital display of temperature, parameter setting keys, and a direct viewfinder. The thermometer can be placed at any place due to a large distance factor.
- Functional digital display of temperature and parameter setting keys.
- Easy installation by a direct viewfinder and a long distance factor.High-speed response of 3ms.
- Wide rangeHigh accurate type with a short spectral response.No moving part like as chopper guarantees long reliability.
- Various accessories for every kinds of installation atmosphere.

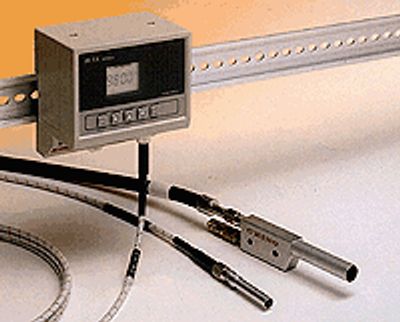

IR-FA Series Fiber Optic Radiation Thermometer
The IR-FA series is a fiber optic radiation thermometer featuring multi-function and high-speed response. Three types, single-color type for low temperature, single-color type for medium/high temperature and two-color type, are available. Parameter setting function, signal modulation and analog output are built in. Various options including lens assembly with finder, laser-spotting function, analog input and communications interface are available.
- Low temperature type with high-speed response (10ms) and short wavelength enables to measure objects with low emissivity like as metals.
- Medium/high temperature type with high accuracy (±0.5 to 1% for 1000 to 2000°C) and high-speed response (10ms) is for various temperature measurement fields.
- Two-color type is stable with less effectiveness of smoke, vapor, dust and lack-of-view.
- Digital temperature display and settings of parameters by key operation.
- Small and lightweight (90 x 90 x 60mm, about 250g), DIN-rail installation.
- Temperature measurement of inductive heating object, measurement in explosion-proof environment, measurement in vacuum equipment and other measurement are possible.By using heat-resistive fiber optic, measurement the environment at 150°C is possible without any water-cooling.
- By signal modulation function, the stable temperature measurement is possible.Laser function for easy spotting of measuring point (option).
- A lens assembly with finder for spotting of measuring point with eyes is available from accessories.
- By the communications interface (RS-485), the data logging and parameters setting are enabled from a personal computer.
- Emissivity setting (emissivity ratio for two-color type) by analog input or automatic emissivity computation function is selectable. (option)CE conformance
