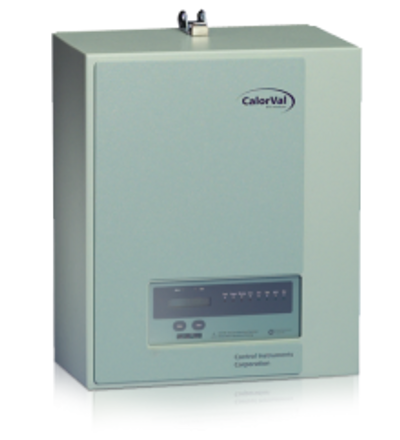

CalorVal BTU Analyzer
The CalorVal is an industrial strength assembly consisting of a heated flame cell and integrated controller that continuously measures the heating value (Calorific Value) of gaseous streams of industrial processes.
A carefully metered flame burns at a constant reference temperature inside an explosion proof measuring cell. A sample, drawn from the atmosphere to be monitored, is passed through the flame cell. A thermocouple measures changes in flame temperature. An increase in temperature is directly proportional to the heating value.
Autocalibration solenoids which allow remote activation of calibration tests are standard.
Photo Gallery
CALORVAL BTU ANALyzer
The CalorVal BTU Analyzer continuously measures the heating value (Calorific Value) of gaseous streams of industrial processes.
- Real time: Direct measure of calorific value
- Fast: Less than 3.5 seconds cell response time
- Universal: Highly uniform response to a wide variety of combustibles
- Continuous: Ongoing measurement, not batched
- Reliable: Not poisoned by process contaminant, water, corrosives, or organo-metallics
- Fully Heated: The entire analyzer's pneumatic assembly is heated which prevents condensation
