Auto-Match I Induction Power Supply
AM1 Design
The Auto-Match I (AM1) is a current source, SCR based, low and medium frequency induction heating machine. This unit comes in power ranges of 10 kW to 2 MW and frequencies of 100 Hz to 3 kHz nominal. Conservatively rated components allow for 100% duty cycle rating along with the HIS 18% MORE POWER standard feature as part of our UM3 and AM1 Brands.
AUTO-MATCH I INDUCTION POWER SUPPLY Specifications
Standard Features and Specifications Include:
- 380-575 VAC (Advise During Quoting), 3-Phase, 50-60Hz Power Input
- Input Disconnect Switch (Circuit Breakers with Under Voltage or Shunt Trip, Available upon request)
- 3-Phase Current Controlled Rectifier
- Frequency Tracking Between 60-130% with NO Capacitor Tap Changes
- Variable Output Voltage with TOT Manipulation, Improving Line Efficiency
- Simple Operators Interface Panel with Voltage, Kilowatt and Frequency Meters
- Single Button Operation with Tight Tolerance Regulation (1/2 of 1%)
- Thermal Safety Protection on Critical Power Components
- Conservative Component Rating, Yields 120% Power Capacity (Standard)
- 25 Years of Proven Durability and Reliability
Optional Features:
- Resonant Frequency Test Circuit for Easy Load Setup
- Full PLC Interface, (0-10V, Discrete I/O and Ethernet Available)
- Push-Lok Hose Fittings (Eliminates All Hose Clamps)
- Assembly Orientation Options and Custom Paint Colors
Common Applications for the Auto-Match I Induction Systems:

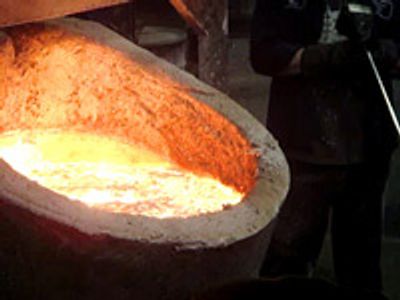

*Forging *Melting *Heat Treating *OCTG Production *Annealing and Tempering *Coating Application *Shrink Fitting *Custom Applications
